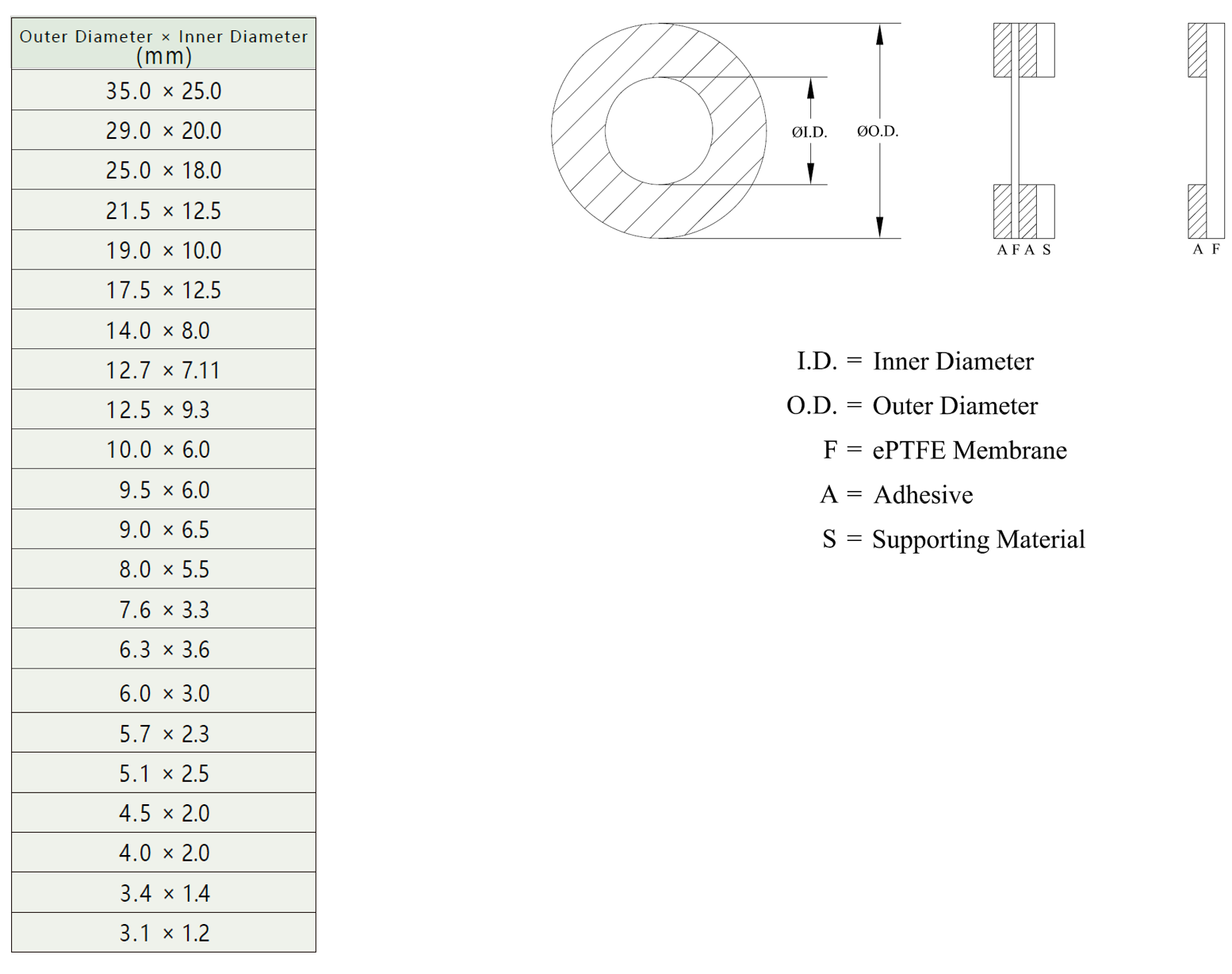

The existing die-cutting tools are shown in the table below

Return to the main page

Temperature Resistance

Adhesive service temperature ranges from -40°C~120°C、-20°C~180°C or others. The adhesive selection is according to the customer's demands.

Installation Recommendations

EFMaflon®-25 series multi-functional Vents are backed with high-performance pressure-sensitive adhesive, it needs to be pressed with appropriate pressure on the adhesive area while installing.

Standard Design                                                      Typical Structure Design
